Crack Detection in Concrete

Author(s): Chittal Patel

Originally published on Towards AI.

Computer Vision

Using Computer Vision

Introduction

Crack detection is crucial in monitoring the health of infrastructural buildings. As seasons change and the level of moisture remains inconsistent across the year and also due to bad quality of the materials used for construction, cracks usually start to develop in walls of buildings and roads as well. So, before reaching more degraded condition, The foremost signs is of development of cracks on the concrete surface. Beams, Walls, and Roads of concrete are usually stressed which leads to crack which can be formally observed at the microscopic level on the surface. After there minor cracks, Slowly and slowly cracks get broaden due to load and increases its length as well as width. We can conclude that before more damage is induced we can detect the cracks early so that preventive measures can be taken on a serious note leading to fast recovery of the health of the structure.

The determination of factors that are important is the type, number, width and length of the cracks found on the structural surface. This helps determine the degradation level, structural health, and carrying capacity of the concrete structures.

Crack detection can be done by manual human inspection whereby, Testing officials will observe each crack manually measure its dimensions which will help further in calculations of how impactful it will be on the degradation of structural health. The disadvantages of manual human inspection are 1) It takes a lot of time. 2) The human inspection often misses minute cracks that can further broaden. 3) Often misses many cracks that are needed to be monitored. This creates a need for fast, powerful, automatic, and reliable crack detection and analysis strategy. So, Automatic crack detection systems are developed to overcome the slow and traditional human inspection methods.

Basically crack is a visible entity and so image-based crack detection algorithms can be adapted for inspection. Also, some sort of difficulties in the image-based detection procedures are also faced due to the random shape, irregular sizes of crack, and noises in images viz. irregular illuminated conditions, shading, and blemishes. Deep learning algorithms can be applied to solving many challenging problems in image classification. Therefore, Now we conquer this problem of detecting the cracks using image processing methods, deep learning algorithms, and Computer Vision.

Problem is addressed by a simple approach of using image classification with Transfer Learning to classify the images in two categories: Negative (Doesn’t contain Crack) and Positive (Contains Crack).

Dataset

Data-set is concrete crack images for classification and the source is mendeley.com and the citation will be provided at the bottom and of course, I’d like to thank the authors for their contribution. We will have two classes of images where the cracked concrete surface will be categorized as positive and the images with no cracks on the surface will be categorized as negative. Let’s review the data set: There are 40,000 RGB images wherein 20,000 are positive and the rest 20,000 are negative. 75% of the images will be used for training and 25% of the images will be used for testing where around ~23% would be for validation and rest ~2% would be for Testing.

Visualizing Data

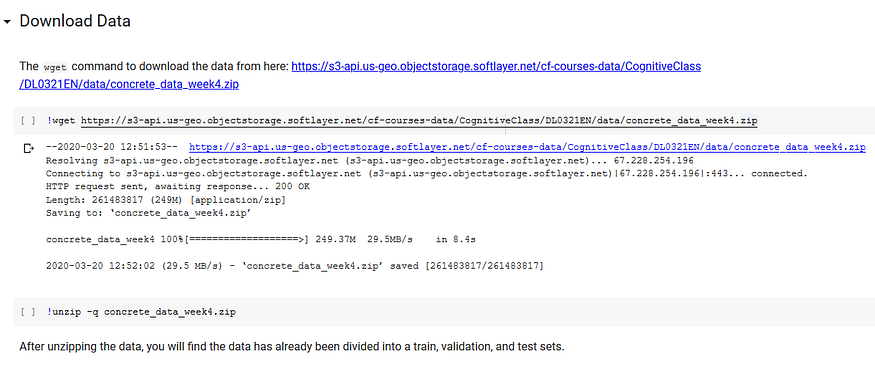

Code to visualize the data :

Images that Contain Crack (Positive)

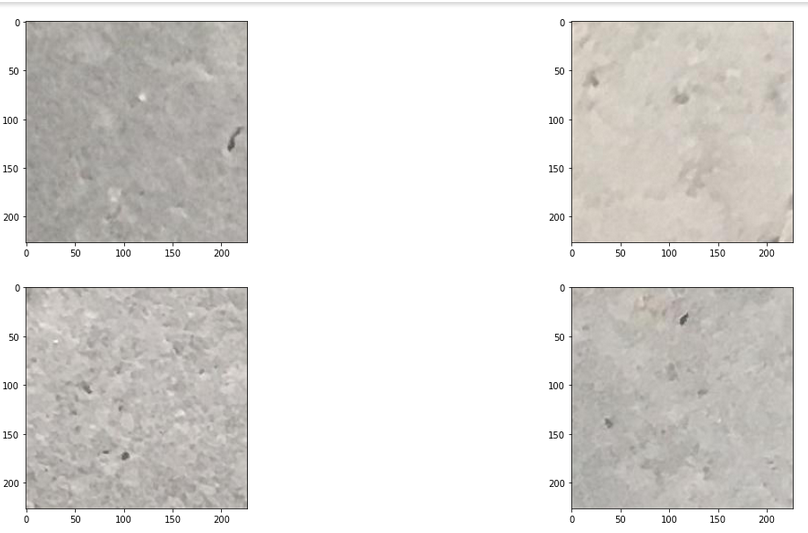

Images that don’t contain Crack (Negative)

Training

Images will be trained on the VGG16 Model. So, First images will be converted to (244,244,3) viz. The default size of the VGG16 Model.

Due to memory issues, Images will be directly read from the directory using the flow from the directory.

The Architecture of Model contains A VGG16 model connected to a Linear layer with 10 neurons further connected to the Linear layer with 2 output nodes with softmax activation.

The model will be trained for 10 epochs and a batch size of 100.

Further training and validation Loss and Accuracy are the plot.

Testing

Testing is done on 500 images that are directly fetched from the directory.

The loss and accuracy are calculated and prediction probabilities are also calculated for the test set.

Conclusion

The score for 10 epochs

Train

Loss: 0.0040 — — — — — Accuracy: 0.9991

Validation

Loss: 0.0146 — — — — — Accuracy: 0.9969

Test

Loss: 0.0017 — — — — — Accuracy: 1.0000

Here is the whole notebook code…

Also, you can find the repository on Github.
