Building a Fully Local LLM Voice Assistant: A Practical Architecture Guide

Author(s): Cosmo Q

Originally published on Towards AI.

Why your next assistant might run entirely on your own hardware.

This past Thanksgiving, I set out to build a fully local voice assistant which should listen, think, act, and speak without relying on the cloud service.

Why bother? Because today’s mainstream assistants are still tied to the cloud, limited by product rules, and hard to customize. Meanwhile, the AI development in the last two years completely changed what individuals can build at home.

This guide summarizes everything I learned while building my own assistant. It’s more than a project recap — it’s a practical framework for how a modern, fully local voice assistant should be designed.

A Voice Assistant Is Not a Pipeline but a Living Loop

When people imagine a voice assistant, they think of a simple chain: audio in, text out, run it through a model, then speak the response.

voice → STT → LLM → TTS → voice

That’s how voice assistants worked a decade ago. Today, that architecture is far too limited. A modern assistant needs to carry context from moment to moment, decide what needs to happen next, call tools and APIs, and wait for your reply before continuing the loop.

The right mental model looks more like a circle than a line. You speak. The assistant hears you, interprets what you meant, decides whether to think, act, respond, or ask for clarification, and then re-enters a waiting state — ready for the next turn, aware of the current task, and capable of resuming it hours or even days later.

Breaking the System into Independent Stages

To build this loop, it helps to decompose the assistant into independent modules. Each module can evolve on its own so that you can swap out implementations without touching the rest of the system.

And this is the architecture that holds everything together:

The diagram captures the system at a glance: audio comes in, becomes text, gets cleaned, and flows into the assistant core. The core does the real thinking over your request, planning what should happen next, calling the appropriate tools, and updating its context before generating a response. That response flows back out through text-to-speech and becomes the assistant’s voice. Then the loop begins again with your next user input.

Now let’s walk through each stage in more detail.

Stage 1: Voice Capture

Everything begins with sound. Voice capture is simply the process of receiving audio from a microphone in your laptop or even from satellite microphones with a Raspberry Pi Hub in hour rooms.

In my experience, using a dedicated microphone helps a lot, especially if you are a non-native English speaker.

This stage does not need to understand language. Its only job is to deliver clean, low-latency audio. Once the sound arrives, the rest of the assistant can take over.

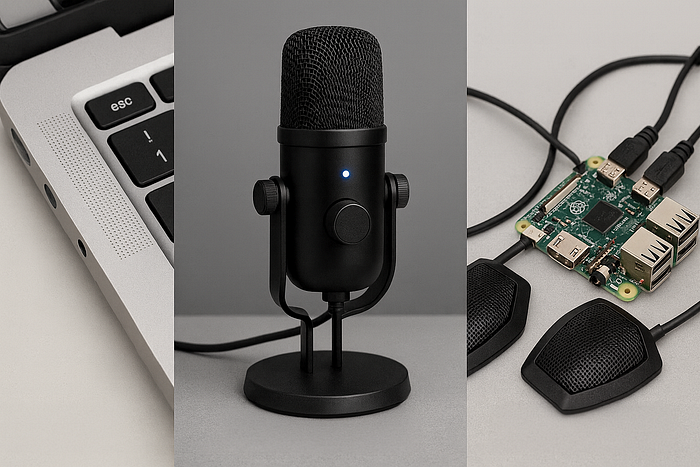

Options

• Laptop or phone’s built-in mic. Good enough for development.
• Dedicated mic(my choice) which helps capture better voice quality.
• Satellite mic for your Raspberry Pi, which I learned from this YouTube video.

Stage 2: Speech-to-Text

Whisper, OpenAI’s speech-to-text(STT) model(2022), is the most popular choice here because it is accurate, open source, and runs well on local hardware. Till 2025, whisper remains the strongest open-source STT option available.

I tested several Whisper variants in my AI home lab (w/ Nvidia 4090), and faster-whisper, which is a reimplementation of OpenAI’s model, delivered the best balance of latency(< 0.5s) and accuracy with the large-v3-turbo model. This model can be run in modern MacBook with unified memory but with longer latency(2~3s) for transcription.

Repo of my STT server: https://github.com/hackjutsu/vibe-stt-server.

On phones, the built-in iOS and Android speech recognizers are lightweight fallbacks. I haven’t tested them myself, but both platforms should expose these features through their native SDKs.

Stage 3: Text Cleanup

The stage is one that most hobby projects skip, but it dramatically improves the perceived intelligence of the assistant: text cleanup.

Raw transcripts often contain filler words, broken punctuation, and grammar inconsistencies.

Raw transcription (before cleanup):

“uh yeah so I was like trying to set up the server and it kind of didn’t
you know uh start properly I guess so I just like restarted it again but
then it still didn’t work…”

Cleaned text (after cleanup):

“I tried to set up the server, but it didn’t start properly.
I restarted it, but it still didn’t work.”

I used to assume Whisper’s prompt could handle this, but it doesn’t behave like a standard GPT-style prompt.

Luckily, a lightweight normalization pass by a small model, such as the ollama-hosted Qwen3:4b in MacBook and Qwen3:8b in the AI home lab, can transform a messy transcript into clean, structured output for later stages for reasoning.

Stage 4: The Assistant Core

Once text is cleaned, it enters the heart of the system: the assistant core, where understanding, memory, decision-making, and real-world actions come together. The core consists of three subsystems:

1. The LLM — thinks (reasoning & planning)
2. The Context Store — remembers (state & memory)
3. The Tool Layer — acts (MCP, RAG, APIs, device control)

4.1 LLM (Reasoning, Planning and Reflection)

The LLM interprets what the user meant, not just what they said. It analyzes the cleaned transcript, infers intent, plans the next steps, chooses whether to call a tool, retrieve memory, or answer directly.

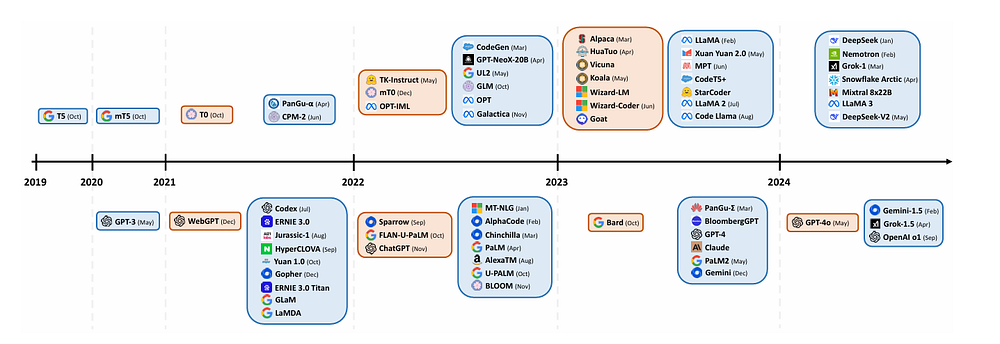

Modern models such as Qwen, Llama, Gemma or Ministral run locally with strong performance, and thanks to quantization they can operate quickly even on modest GPUs. This blog has a good summary of open-source LLMs for 2025.

Both ollama and LM Studio can host small models(< 30B) locally. Some models have stronger tool-calling reliability, which matters when integrating MCP or RAG triggers. I also noticed (as of 12/2025) some issue of tool calling with ollama-hosted models in another project.

4.2 Context Store (Memory and State)

A real assistant needs memory.

The context store maintains both short-term conversational state and long-term working state such as timers, the last device you controlled, the article you’re halfway through, a task you paused yesterday, and more.

Before the LLM reasons about a request, it reads from context. After it finishes reasoning, it writes back updates. This prevents the assistant from forgetting what it’s doing, or reviving stale tasks unintentionally.

The context store can be as simple as a local SQLite database or as structured as your system requires.

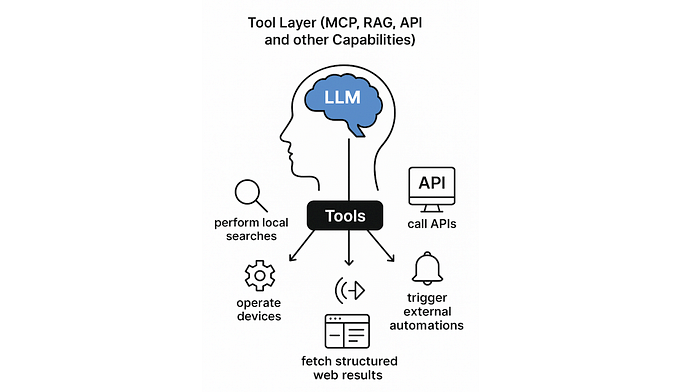

4.3 Tool Layer (MCP, RAG, API and other Capabilities)

If the LLM is the brain, the tool layer is the hands and senses.

MCP (Model Context Protocol) is especially powerful here, because it gives the assistant standardized access to capabilities without custom wiring.

RAG (Retrieval-Augmented Generation) is a technique that lets the assistant pull in relevant knowledge from your private data so the LLM can reason with accurate, up-to-date information.

Together, tools let the assistant:

• perform local searches over your private documents
• call APIs
• operate devices
• read/write local files
• trigger external automations
• run computations
• fetch structured web results

Tools return structured results, which the LLM interprets and incorporates into the next step of reasoning. This separation between thinking and acting is what elevates the assistant beyond a chatbot.

The assistant core is complex enough to deserve a separate blog on its own, so I’ll pause here and keep the focus on the high-level architecture.

Stage 5: Text-to-Speech

Once the thinking and acting are done, the assistant needs a voice.

Text-to-speech(or TTS) used to be the weakest link in DIY projects. Today, A few open source projects offer expressive, low-latency speech that makes your assistant’s voice much more useful.

• xtts-v2, my choice in project
• piper
• higgs-audio (not tested yet)

This reddit post summarized the popular open source TTS libraries. In my testing, most local TTS models still produce a semi-human, semi-robotic tone despite their marketing. Some offer voice cloning, but the results often feel uncanny, so I prefer sticking with their default voice.

If you prefer cloud-quality voices, services like Hume.ai also produce excellent audio, though they introduce a non-local component.

Stage 6: Voice Output

Finally, the audio leaves the system and plays through a device: your phone, your speakers, or even a group of satellite speakers with a Raspberry hub. Most of time, the first “voice capture” stage and the last “voice output” stage happen in the same device which combines the mic and speaker.

This closes the loop and returns the assistant to listening mode (see the architecture diagram below).

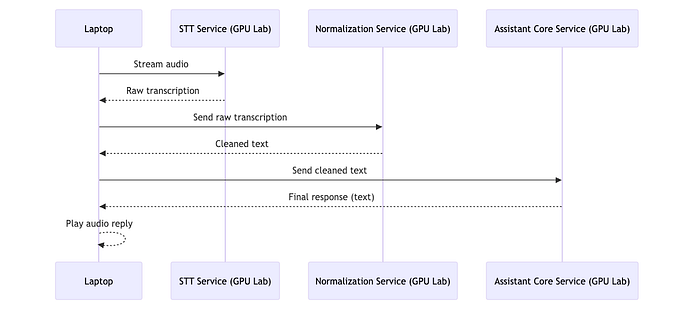

Distributed Architecture: Offload Heavy Compute Wherever You Want

A key learning when building a local assistant is that everything doesn’t have to run on one device. Whisper and your LLM can sit on a GPU server, the orchestrator can run on a tiny laptop or Raspberry Pi, and your phone can serve as both mic and speaker. All within your LAN and with minimal latency.

In my project vibe-speech, I started with everything running in the MacBook and ended with migrating the heavy computation to the dedicated machine with GPU. The local laptop is a thin orchestrator layer.

Final Thoughts

This blog looks at the high-level architecture of a fully local LLM voice assistant, based my own hands-on experiments and online research.
If you’re not restricted to running locally, of course, the landscape is very different: plenty of cloud services can spin up a voice chatbot in minutes.

There’s also a different architectural path worth mentioning: a speech-to-speech model that takes raw voice as input and directly returns ready-to-play audio as output , without intermediate text or stitching together multiple services. I haven’t found a good one available for testing yet, but it’s an exciting direction and worth keeping on your radar.
