ENGINEERING AT SCALE

🔑 Key Principles of Designing a Microservices Architecture :-

Designing a microservices-based system requires more than breaking an application into smaller parts — it requires adopting a set of architectural principles that ensure scalability, agility, resilience, and long-term maintainability.
Below are the core principles every Solution Architect should focus on.

1️⃣ Single Responsibility Principle (SRP)

Each microservice must be responsible for one specific business capability and do that really well. This increases modularity and keeps the service focused.

Example:
In a modern travel-booking platform, the Booking Service, Payment Service, and Notification Service are all separate. Each solves a different business problem without overlapping responsibilities.

2️⃣ Decentralized Data Management

Every microservice manages its own database, avoiding shared schemas.
This enables teams to choose the best-fit database technology (SQL, NoSQL, Graph, Time-Series, etc.) based on the service’s needs.

Example :-

• The Order Service may use a relational database for ACID consistency.
• The Recommendation Service may use a GraphDB to better represent relationships between items.

Decoupling data ensures flexibility, autonomy, and easier scaling.

3️⃣ Independence & Autonomy

Microservices are built, deployed, and scaled independently, without impacting other services. This dramatically reduces downtime and enables faster delivery.

Example:
You can deploy a new version of the Payment Service at peak hours without touching the Search, Cart, or User services.

4️⃣ API-First Communication

All communication between microservices happens through well-defined APIs, ensuring loose coupling and clear contracts. Common protocols :-

• REST for simplicity
• gRPC for high-performance internal communication
• Kafka / Messaging Systems for asynchronous workloads

Example:
The Order Service interacts with the Payment Service via a secure API call to process a transaction.

5️⃣ Resilience & Fault Tolerance

Failures should be expected — and contained. Microservices must degrade gracefully without causing cascading failures. Common resilience patterns :-

• Circuit Breaker
• Retry with Backoff
• Bulkhead Pattern
• Graceful Failover

Example:
If the Recommendation Service goes down, the product page still loads with default recommendations.

6️⃣ Independent Scalability

Each microservice can scale individually based on load.

Example:
During festival sales, the Checkout Service might need aggressive scaling, while the Analytics Service remains stable.

This approach is more cost-efficient than scaling an entire monolith.

7️⃣ DevOps & Continuous Delivery

Microservices thrive on automation.
Every service should have its own CI/CD pipeline, supporting frequent releases and automated testing.

Example:
Each microservice (e.g., Authentication, Pricing, Search) follows its own pipeline to build, test, scan, and deploy independently.

8️⃣ Decentralized Governance

Teams have the autonomy to choose: the programming language, frameworks, libraries, database engines as long as they adhere to overall architectural guidelines.

Example :-

• Fraud-detection microservices might be built in Python (ML-friendly)
• High-performance payment services might use Java Spring Boot

9️⃣ Observability & Monitoring

A distributed system requires deep visibility into its health and behavior of each microservices. This includes: Logging, Metrics, Tracing, Dashboards.

Tools: Prometheus, Grafana, ELK/EFK, Jaeger, OpenTelemetry.

Example:
Tracing a user’s checkout journey across 8 services using distributed tracing.

🔟 Event-Driven & Asynchronous Communication

Microservices often communicate through events to remain loosely coupled and more scalable.

Example:
When inventory reduces:

• The Inventory Service publishes an event
• The Order Service consumes it
• The Analytics Service also consumes it

All without directly calling each other.

1️⃣1️⃣ Security & Isolation

Each microservice implements its own security boundaries and follows best practices such as: OAuth2, JWT, Mutual TLS (mTLS), Zero-trust networking. Security often begins at the API Gateway, but each service enforces its own rules.

1️⃣2️⃣ Lightweight & Simple Design

Microservices should remain small, easily maintainable, and focused.
Complexity lies in the system as a whole — not inside individual services.

Example:
A Notification microservice should only send notifications; it should not verify users or process payments.

1️⃣3️⃣ Domain-Driven Design (DDD)

Microservices should align with business domains and follow bounded contexts alligned to business obectives.

Example (Banking):

• Accounts Service
• Transactions Service
• Fraud Detection Service
• Customer Profile Service

Each maps directly to a business capability.

1️⃣4️⃣ Cloud-Native Design

Microservices leverage cloud-native capabilities such as: Containerization (Docker), Orchestration (Kubernetes/EKS), Auto-scaling, Managed databases and queues.

Example:
Deploying all microservices as containers on AWS EKS, with autoscaling and rolling updates.

🧩 How to Manage Communication Between Microservices

Ensuring Reliability, Scalability & Performance

In a microservices architecture, different services must talk to each other frequently — to fetch data, trigger workflows, publish business events, or update downstream systems. Managing this communication well is critical because the entire system’s performance, reliability, and user experience depend on it.

Microservices communication broadly happens in two ways :-

👉 Synchronous communication
👉 Asynchronous communication

Let’s deep dive into each with practical context and real engineering considerations.

1️⃣ Synchronous Communication (Real-Time Request/Response)

Synchronous communication means one microservice calls another and waits for the response. This is similar to how we make a phone call — we expect the person on the other side to answer immediately.

How it works

Common protocols used: HTTP / HTTPS, REST APIs, GraphQL, gRPC.

When to use

Use synchronous calls when the interaction is time-sensitive or user-facing, for example:

✔ Fetching user profile during login
✔ Checking inventory in real time before placing an order
✔ Getting pricing details instantly during checkout

2️⃣ Asynchronous Communication (Event-Driven, Non-Blocking)

Asynchronous communication means services send messages without waiting for a response. This is like sending an email — the recipient can read it whenever ready.

How it works

This model uses a message broker or event streaming system such as: Kafka, RabbitMQ, Amazon SQS / SNS, Azure Service Bus, Google Pub/Sub.

When to use

Best suited when real-time response is NOT required:

✔ Order placed → Order service publishes an OrderCreated event
✔ Notification service sends confirmation email asynchronously
✔ Analytics service processes events in background
✔ Payment processing pipelines
✔ Stock updates across multiple services

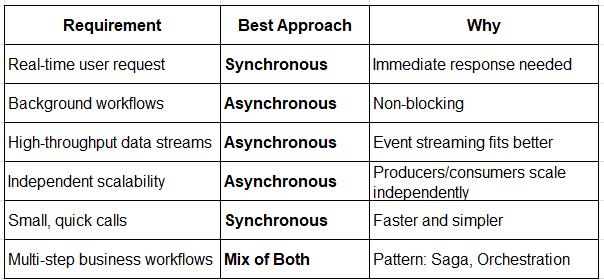

🔄 Choosing the Right Approach: Sync vs Async?

Most real-world microservice architectures use a hybrid:
👉 Sync for user-facing operations
👉 Async for internal event-driven flows

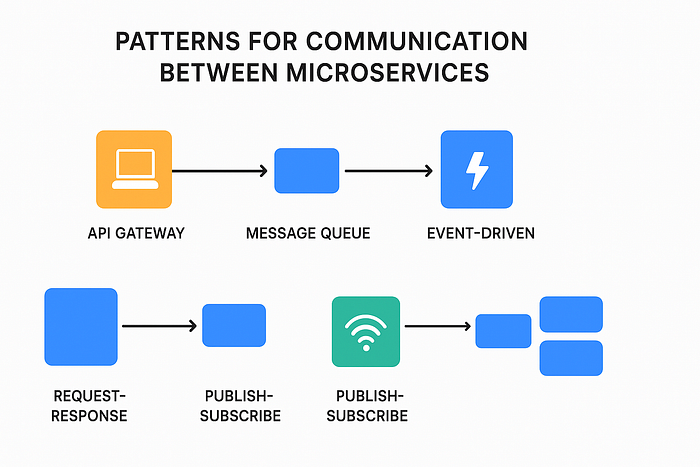

🔁 Patterns for Communication Between Microservices

Building Reliable, Scalable & Resilient Distributed Systems

Microservices thrive on the idea that each service is independent — but to deliver a complete product experience, they must exchange data, trigger workflows, and stay in sync. To enable this safely and efficiently, modern architectures rely on communication patterns.

Let’s deep dive into the most important patterns and best practices with real-world examples.

1️⃣ API Gateway Pattern — The Single Entry Point

An API Gateway sits in front of all microservices and acts as the unified entry point for client requests.

What it does

• Routes requests to the correct microservice
• Performs authentication & authorization
• Handles rate limiting and throttling
• Aggregates multiple responses into one payload (Backend-for-Frontend pattern)

Tools :- AWS API Gateway, NGINX, Kong, Apigee

Example

A mobile app requests Order Details, which comes from:
✔ Order Service
✔ Inventory Service
✔ Shipping Service

The API Gateway collects responses and returns a single aggregated response to the user.

2️⃣ Message Queue Pattern — Reliable, Asynchronous Workflows

In this pattern, a service publishes a message to a queue. Another service consumes it — without both needing to be online at the same time.

What it solves

• Decoupling between services
• Guaranteed delivery even if the consumer is temporarily down
• Smooth handling of traffic spikes

Tools

RabbitMQ, Amazon SQS, Azure Service Bus.

Example

When an order is placed:
Order Service → pushes message to queue
Email Service → reads message and sends confirmation email

No service waits for another — improving performance and resilience.

3️⃣ Event-Driven Architecture — Loosely Coupled, Scalable Systems

Services communicate by publishing events (not messages). Consumers “react” whenever they are interested in that event.

Key Characteristics

• Highly decoupled
• Real-time streaming possible
• Scales easily

Tools

Apache Kafka, AWS EventBridge, Google Pub/Sub.

Example

Inventory Service updates a stock count → publishes StockUpdated event.
Order Service subscribes to that event → updates its internal availability.

4️⃣ Request–Response Pattern — Traditional Synchronous Calls

The most straightforward pattern:
Service A sends a request, Service B returns a response.

Tools

REST, gRPC, GraphQL.

Use Case

The Order Service needs user information before creating an order:
Order Service → GET /user/123 → User Service returns result.

This is simple but introduces tight coupling, so it’s used when real-time response is required.

5️⃣ Publish–Subscribe (Pub/Sub) Pattern — One-to-Many Broadcasting

A producer (publisher) sends an event, and multiple subscribers receive it independently.

Tools

Kafka, Redis Streams, AWS SNS.

Example

A User Registration Service publishes UserCreated event:

• Email Service → sends welcome email
• Analytics Service → updates user metrics
• Notification Service → pushes onboarding notifications

All triggered from a single event.

🏆 Best Practices for Microservices Communication

6️⃣ Decoupling Through Asynchronous Messaging

Use asynchronous communication whenever real-time response is not required.
Instead of calling Notification Service directly, Order Service can simply publish OrderPlaced event.

This reduces dependencies and improves system resilience.

7️⃣ Circuit Breaker Pattern — Prevent Cascading Failures

Detects when a service is unhealthy and stops sending requests to it temporarily.

Tools

Hystrix, Resilience4j.

Example

If Payment Service goes down, Order Service immediately returns a fallback response instead of waiting — preventing chain reactions.

8️⃣ Timeout & Retry Policies — Never Wait Forever

Set strict timeouts to avoid stuck requests.
Retries should be implemented with:

• exponential backoff
• jitter
• idempotency check

Ensures the system recovers safely from transient failures.

9️⃣ Load Balancing

Distributes incoming requests across multiple instances of a service.

Tools

Kubernetes Ingress, Envoy, NGINX, AWS ALB/NLB.

Improves performance and avoids overloading any single instance.

🔟 Idempotency — Safe Retries Without Duplicate Side Effects

Idempotent operations return the same result even if executed multiple times.

Example

Retrying a payment request should NOT charge the user twice.
Retrying order creation should not create multiple orders.

This is crucial for reliability in distributed systems.

1️⃣1️⃣ Distributed Tracing for End-to-End Visibility

Trace user requests across multiple microservices to debug issues and optimize performance.

Tools

OpenTelemetry, Jaeger, Zipkin

Example

Tracking a “Place Order” workflow across:
API Gateway → Order Service → Payment Service → Notification Service

Gives complete visibility into latency and bottlenecks.

Microservices succeed when architecture decisions are driven by business domains, operational realities, and engineering maturity — not trends. The real value comes from designing services that are autonomous, observable, secure, and resilient, while keeping communication simple and intentional.

Whether you are migrating from a monolith or designing a platform from scratch, applying these principles will help you avoid common pitfalls and build systems that scale both technically and organizationally.

Architecture is about trade-offs — and great microservices architecture is about making the right ones.
